Tectonic Threaded

Tectonic Threaded

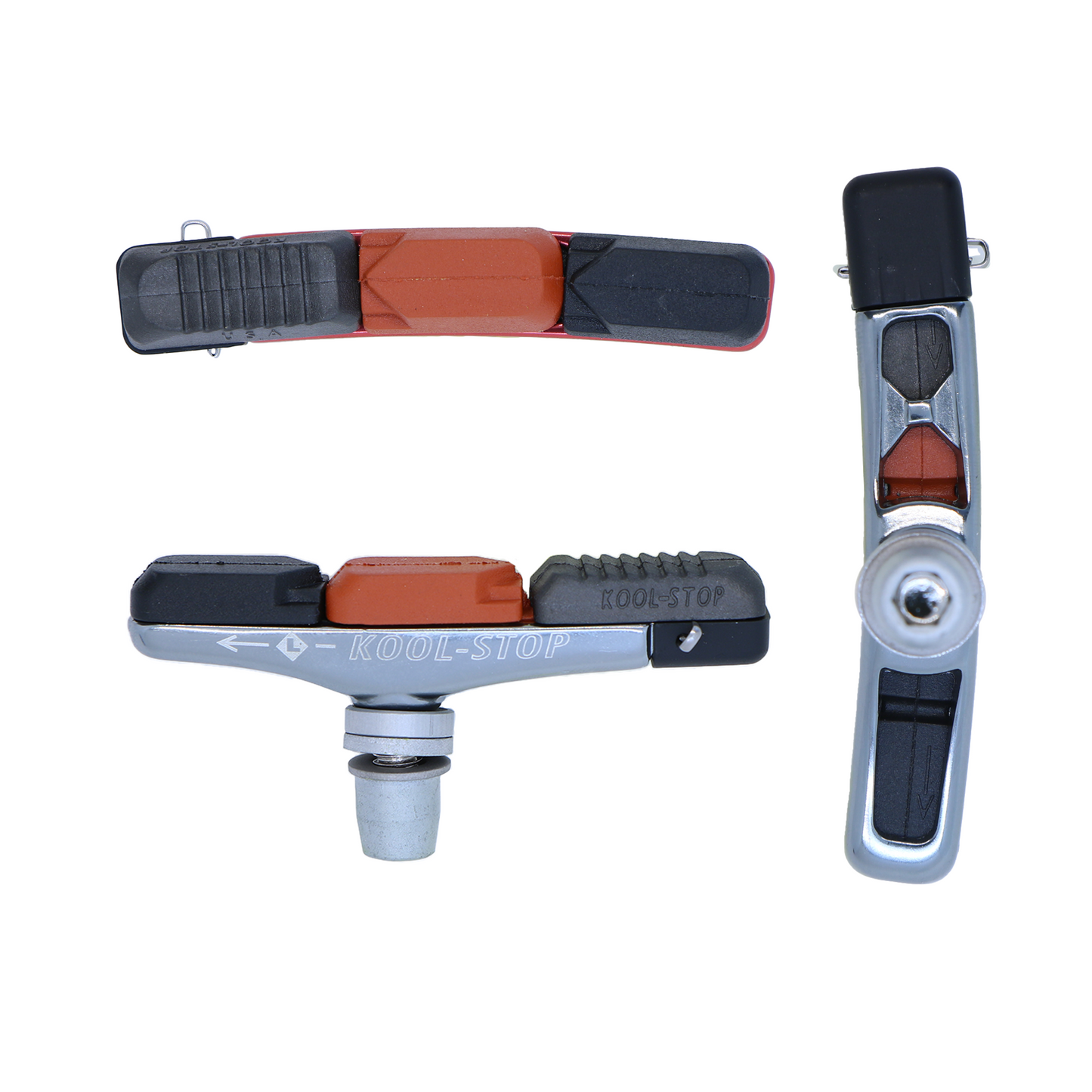

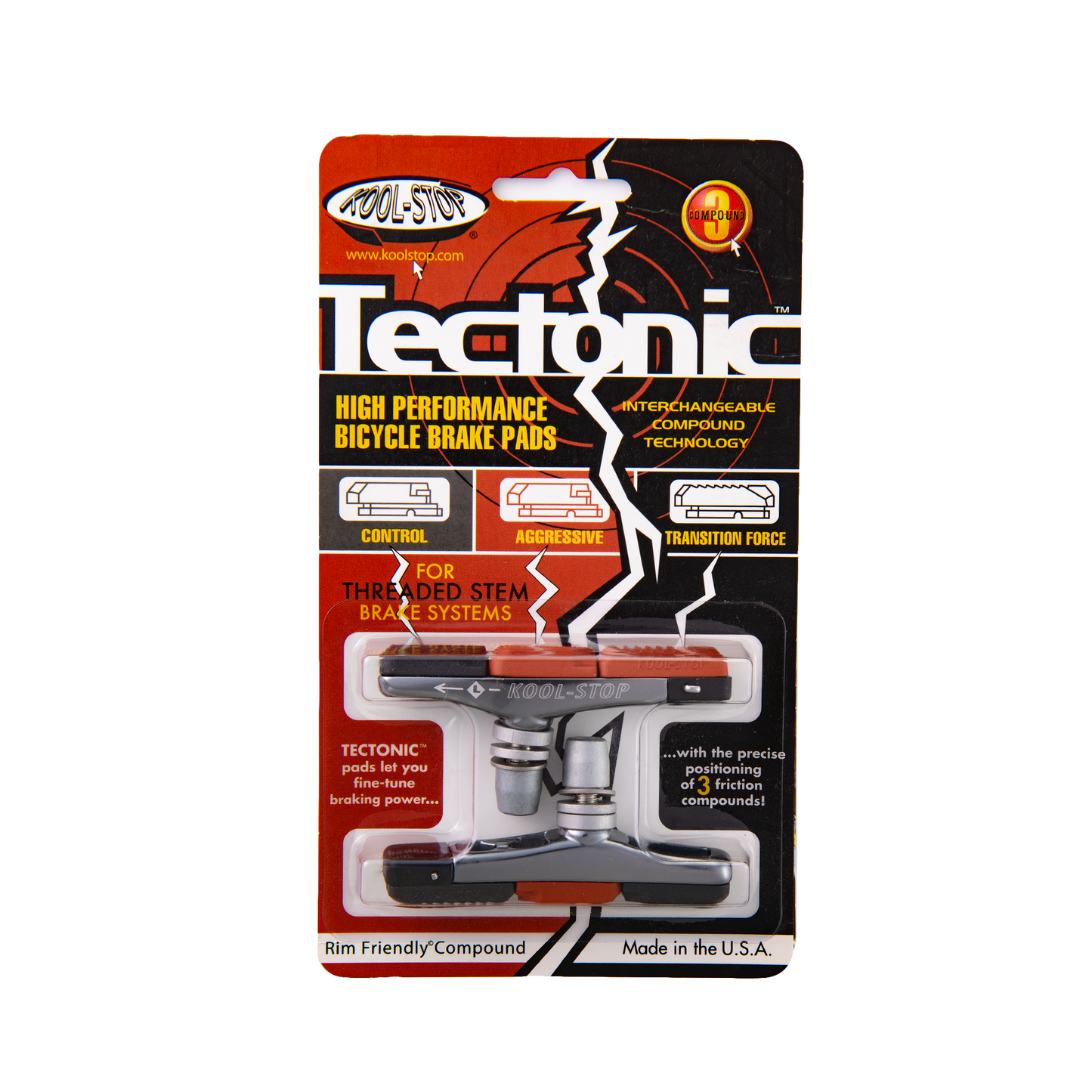

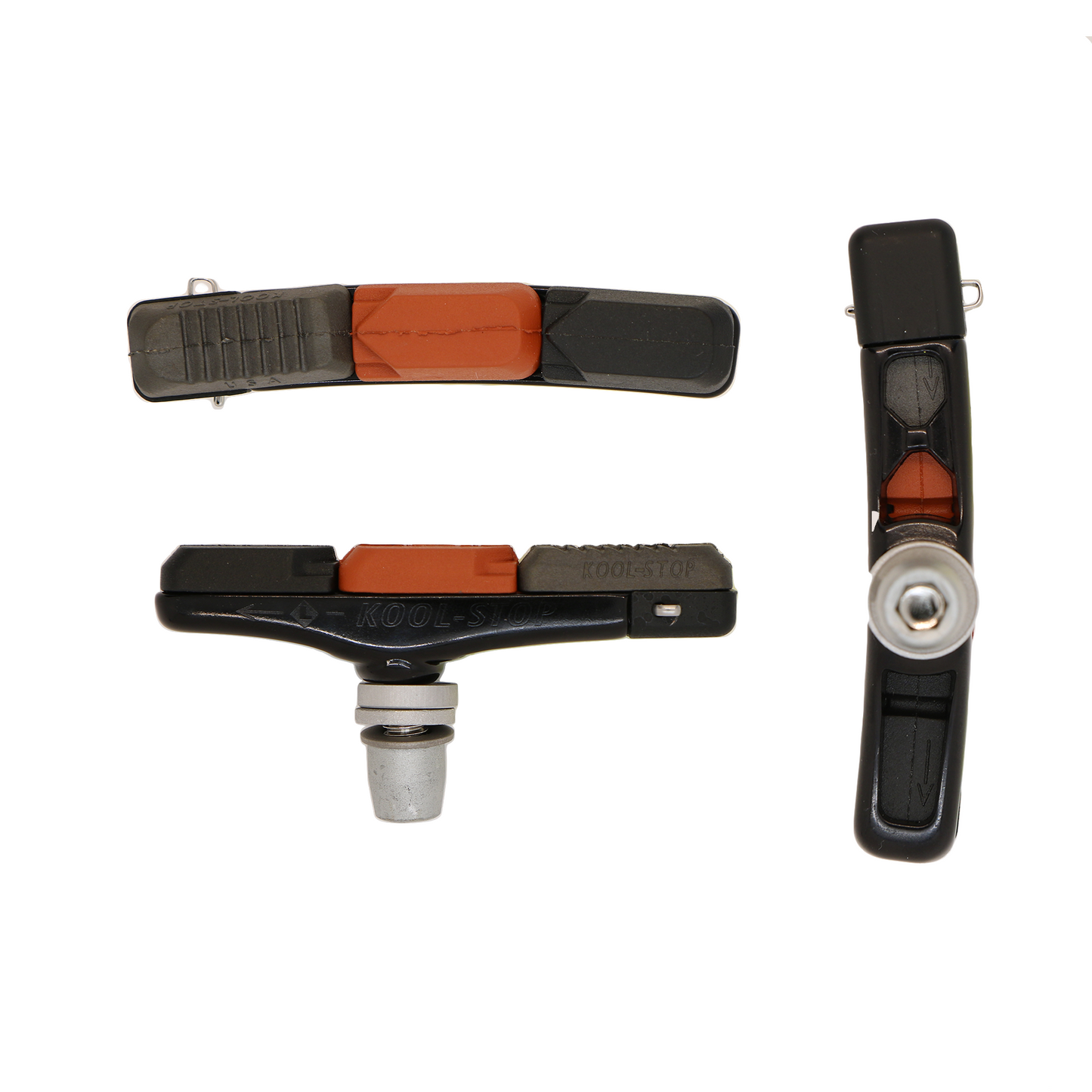

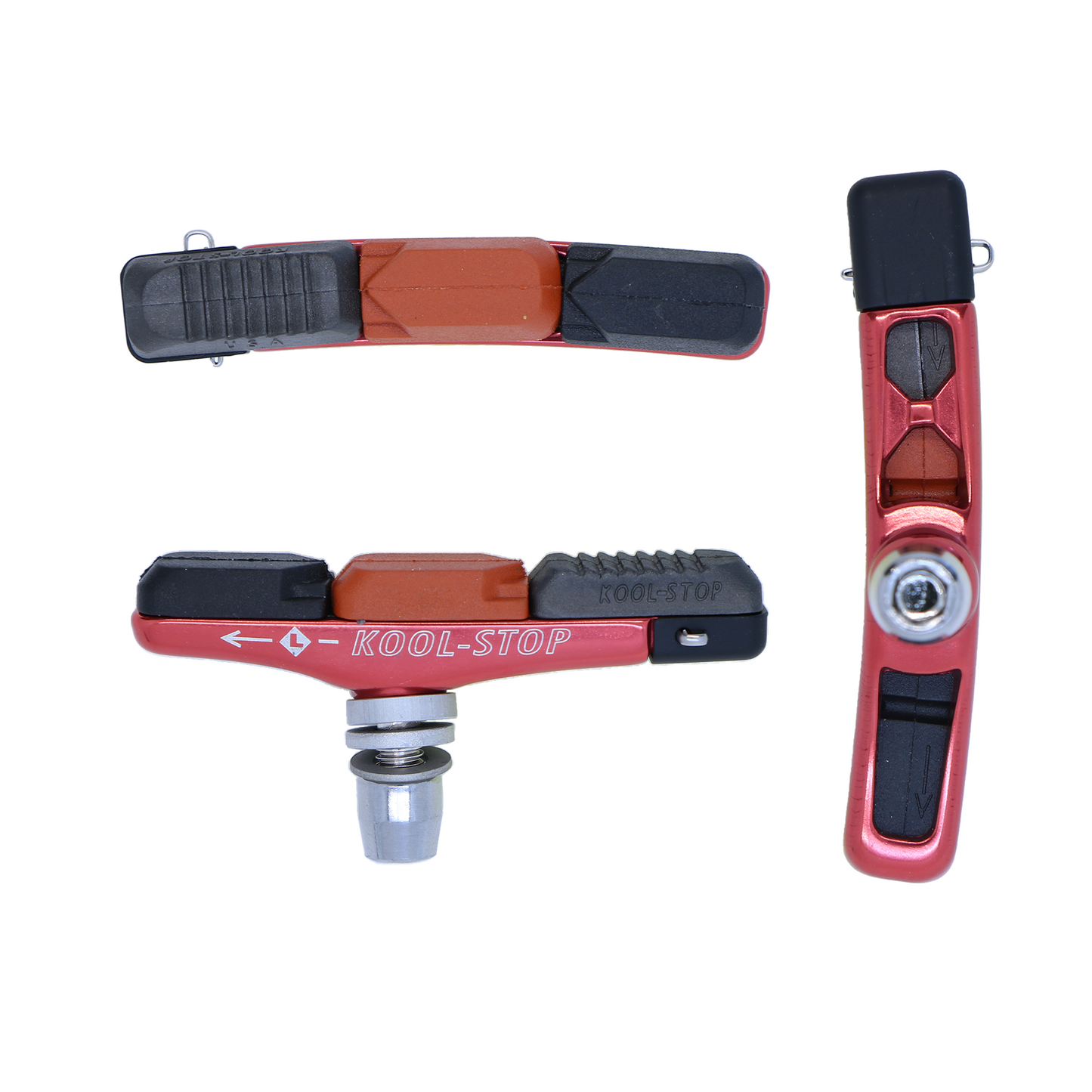

The  Tectonic brake pad is a forged alloy holder that allows the rider to customize the exact positioning of the friction materials. The friction inserts are designed to interlock together and are secured into the holder on all sides. The Pad-Lock™ washer system has been improved by incorporating the convex pivot adjustment into the backing plate; thus allowing for the reduction in the number of washers needed to achieve all spacing requirements.


The Tectonic pads come with a multi-friction compound setup, but single or dual compounds can also be configured.

Features:

  • Aluminum Holder
  • Integrated Pad-Lock™ Hardware
  • Secured End Cap
  • Interchangeable Compounds
  • Offset Post
  • Water  Grooves
  • Available in Threaded and Cantilever (smooth post)

Specifications:

  • Weight per pair: 50.8 grams
  • Overall length: 73.3 mm
  • Pad contact width: 9.5 mm

Threaded Tectonic Holder Part Number:

  • KS-TEC Triple Black
  • KS-TECS Triple Silver
  • KS-TECR Triple Red

Replacement Pads: Tectonic

Disclaimer: Only Kool Stop tectonic inserts will fit tectonic holders
