Tectonic Cantilever

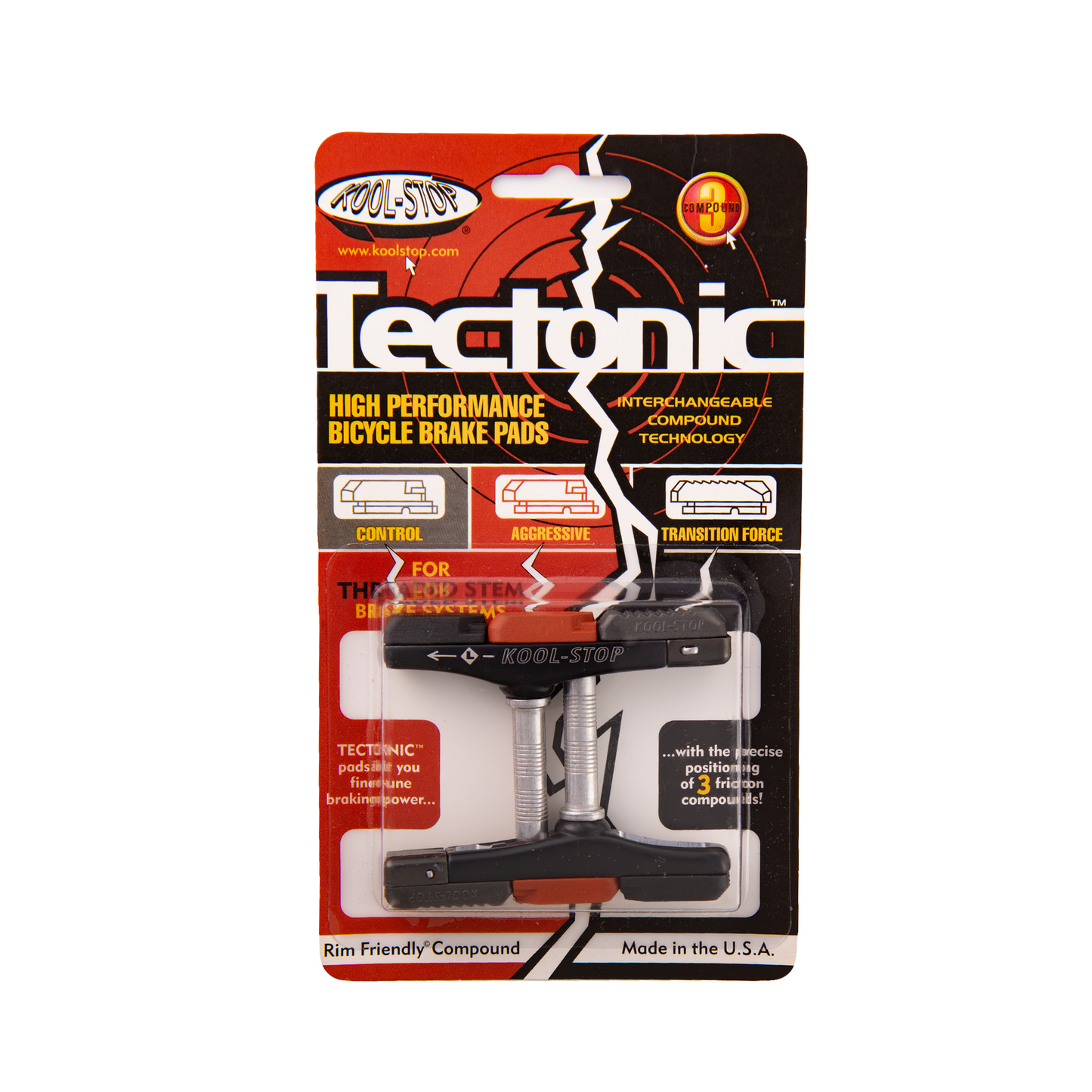

Tectonic Cantilever

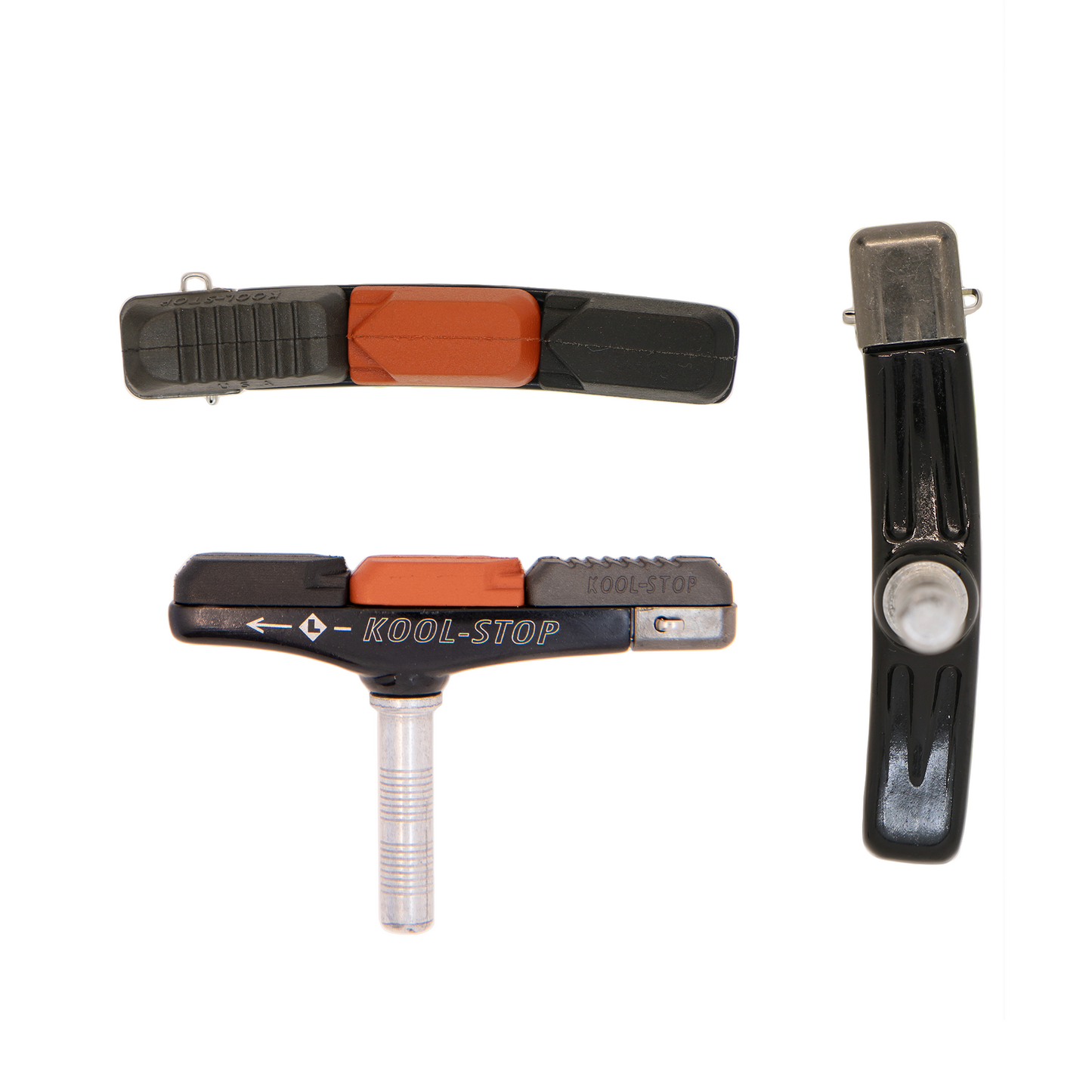

The  Tectonic brake pad is a forged alloy holder that allows the rider to customize the exact positioning of the friction materials. The friction inserts are designed to interlock together and are secured into the holder on all sides. The Pad-Lock™ washer system has been improved by incorporating the convex pivot adjustment into the backing plate; thus allowing for the reduction in the number of washers needed to achieve all spacing requirements.

The Tectonic pads come with a multi friction compound set up, but single or dual compounds can also be configured.


  • Aluminum Holder
  • Integrated Pad-Lock™ Hardware
  • Secured End Cap
  • Interchangeable Compounds
  • Offset Post
  • Water  Grooves
  • Available in Threaded and Cantilever (smooth post)


  • Weight per pair: 50.8 grams
  • Overall length: 73.3 mm
  • Pad contact width: 9.5 mm

Cantilever Tectonic Holder Part Number: KS-TECCT

Replacement Pads: Tectonic
